HOW TO INSTALLING, connect, stringing POWER CORD THREE THREE LIGHT SWITCHES

In this discussion I will explain a little about how to install, connect, assemble or assemble electrical wiring for the lamp three different rooms, each of which can be in the switch or turn off is in one place, such as outdoor lights, living room lights and room lights family, while the switch is placed around the living room.


The materials required:

     Switches for three lights, one fruit.
     Fittings / lamp bowl, three fruits.
     NYM cables size 2X1,5mm, sufficiently tailored to the needs.
     Special electrical isolation, one fruit.
     No.10 cable clamps, two packs

How to install:

     Turn off electricity at home by moving the position of the MCB switch ON (1) to OFF (0).

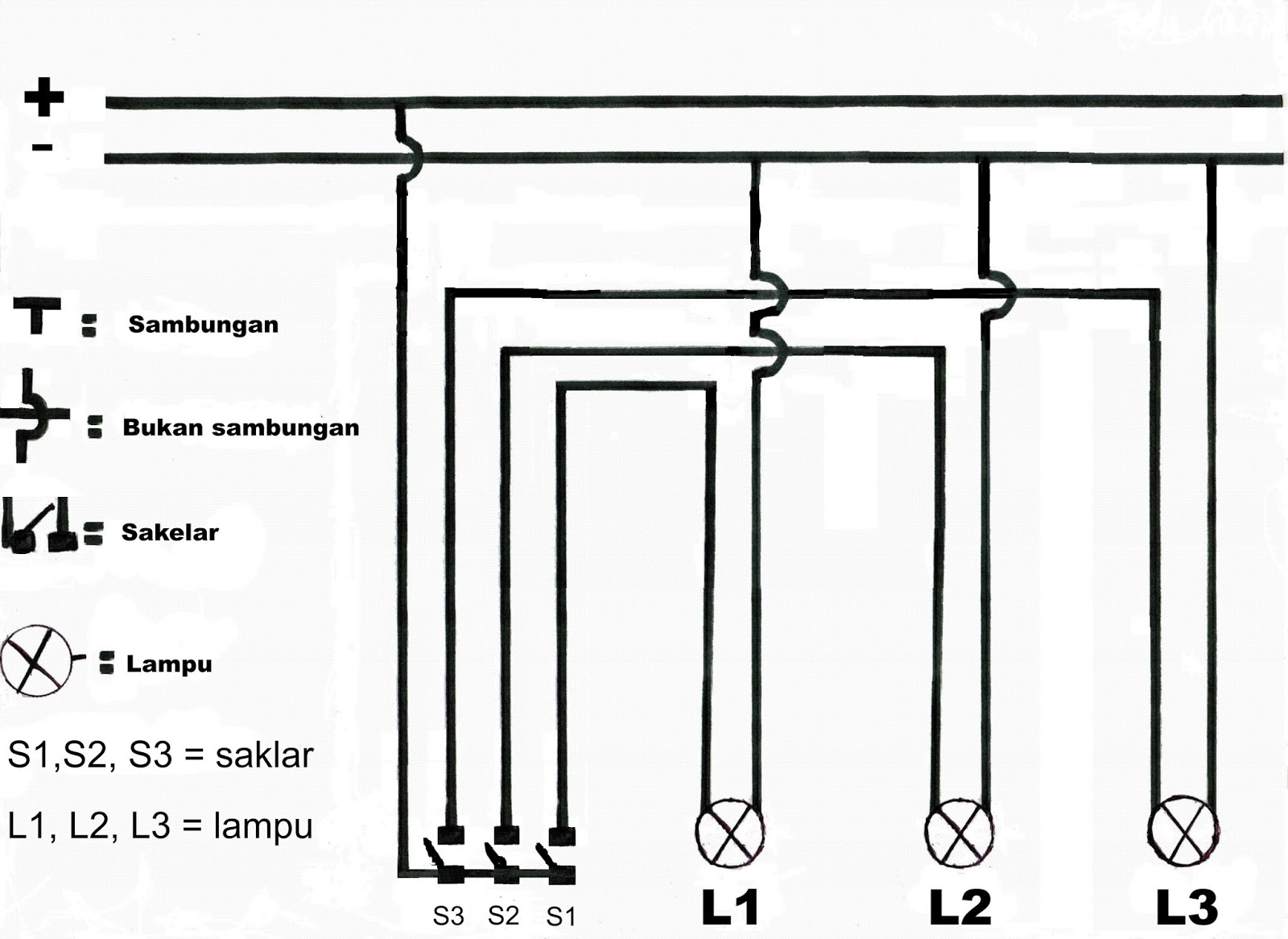

     Combine (jumper) one terminal of each switch using the cables that have been peeled and then the combined terminal was connected via a black cable to the positive cable main line of electrical installation (usually black and tespen on this cable will light).
     Attach the black cable on the left switch terminal then connect it to one terminal outside light fittings.
     Attach the black cable on the middle switch terminal end of the cable and then connect it to one of the terminals living room light fittings.
     Attach the black cable to the terminal and then connect the switch to the right end of the cable into one of the living room lamp terminal fittings.
     Combine (jumper) one of the three terminals of the light fittings have not installed any cable wear blue cable and then connect the negative cable to the main line of electrical installation (usually blue)
     Do not forget to isolate each cable connection and install the cable clamp with 50cm distance between the clamps to be sturdy and neat wiring.
